GRAPHALLOY®

Type 845P
Self Aligning Cast Iron Pillow Blocks

Interchangeable with standard ball bearing pillow blocks

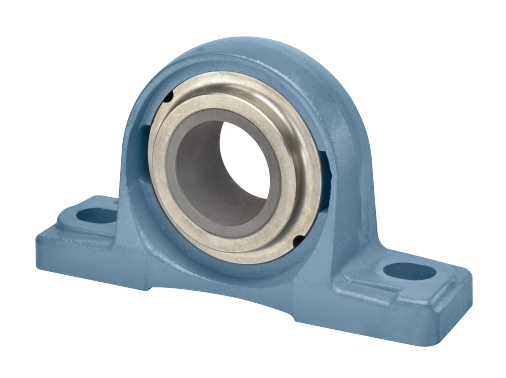

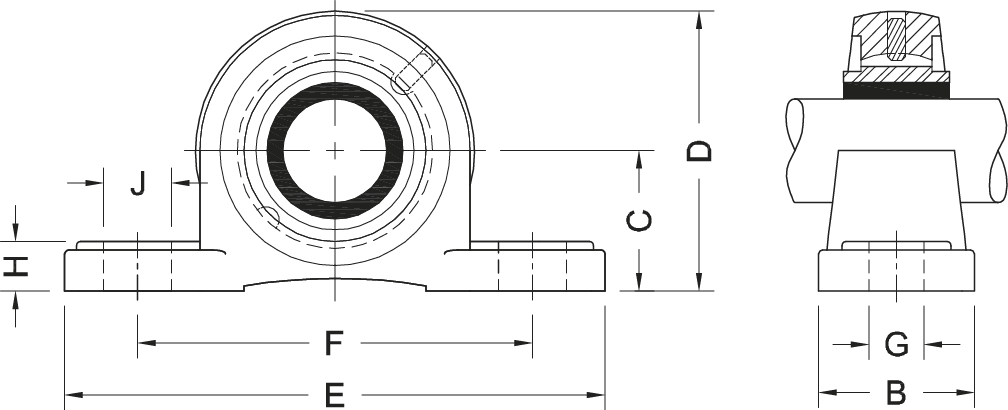

Graphalloy 845P Pillow Block

For dryers, kilns, conveyors and dampers. Metric sizes, stainless steel assemblies and FDA accepted bushing grades are available. Inserts are also sold without the housing to fit your existing housing.

Part Number*

Standard Shaft Size









Bolt Size





Min

Max

B

C

D

E

F

G

H

J

845P-30
1/2
3/4
1-1/2
1-5/16
2-17/32
5
3-3/4
3/8
1/2
3/4
845P-33
3/4
1
1-1/2
1-7/16
2-25/32
5-1/2
4-1/8
3/8
1/2
3/4
845P-39
1-1/16
1-1/4
1-7/8
1-11/16
3-5/16
6-1/2
4-3/4
1/2
19/32
13/16
845P-45
1-1/4
1-1/2
1-7/8
1-7/8
3-21/32
6-9/16
5
1/2
5/8
13/16
845P-50
1-1/2
1-5/8
2-1/8
1-15/16
3-27/32
7-1/4
5-13/32
1/2
21/32
13/16
845P-53
1-5/8
1-3/4
2-1/8
2-1/8
4-3/16
7-15/32
5-3/4
1/2
21/32
13/16
845P-57
1-3/4
2
2-3/8
2-1/4
4-7/16
8-1/8
6-1/4
5/8
3/4
7/8
845P-63
2
2-1/4
2-3/8
2-1/2
4-23/32
8-5/8
6-23/32
5/8
3/4
7/8
845P-69
2-1/4
2-1/2
2-3/4
2-3/4
5-7/16
9-1/2
7-1/4
5/8
7/8
1
845P-82
2-11/16
3
2-29/32
3-1/4
6-3/8
10-13/16
8-17/32
3/4
1-3/32
1-3/16
